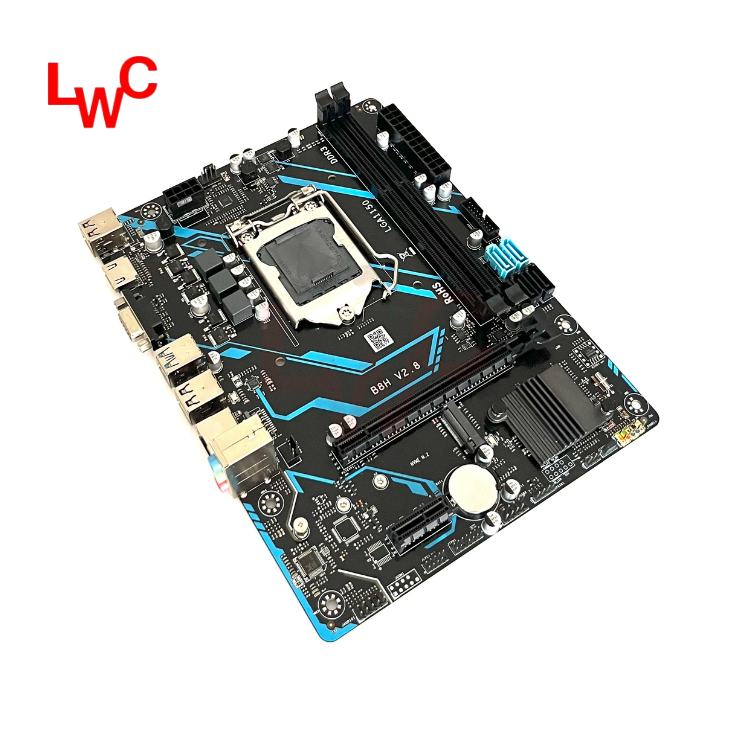

MAINBOARD 1150 (H81-B8HV2.9)

Brand LWC (Longwell)
Model H81-B8HV2.9
CPU Support Supports 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 processors
Socket LGA1150
Chipset Intel® H81
Memory Dual Channel DDR3 Memory Technology
2 x DDR3 DIMM Slots
Support DDR3 1600/1333/1066 MHz Non-ECC, Un-Buffered
Max.capacity up to 16GB Memory
Graphic Integrated Graphics Processor
Audio Realtek® ALC 662 5.1 Channel Audio code
Expansion Slot 1 x PCI Express 2.0 x16 (x16 mode)
1 x PCI Express 2.0 x1
Storage 2 x SATA II 3.0Gb/s Connector
2 x SATA III 6.0Gb/s Connector
1 x NVME M.2
Supports M.2 Type 2242/2260/2280 SSD module
Internal I/O Connectors 1 x 24-pin EATX Power Connector
1 x 8-pin ATX 12V Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x F USB 3.0 connectors
1 x F USB 2.0 Connector
1 x CMOS
1 x Front Panel Audio Connector (AAFP)
1 x Speaker Connector
1 x System Panel Connector
Back Panel Connectors 4 x USB 2.0 Ports
2 x USB 3.0 Ports
1 x HDMI Port
1 x VGA (D-Sub) Port
1 x RJ-45 LAN port
3 x Audio Jacks: Line in / Speaker / Microphone
LAN 10/100/1000 Mb/s auto negotiation Half/Full duplex capability
Realtek® RTL8111K
Form Factor Micro ATX Form Factor Dimension: 22.1 cm*17.0cm
Operation System Support Microsoft® Window® 7 / 8 / 10
Boot Mode Support UEFI mode
Smart Fan Mode Yes (Temperature control)
Accessories: 1 x SATA cable
1 x I/O Rear Panel
1 x User Manual
1 x CD Driver
