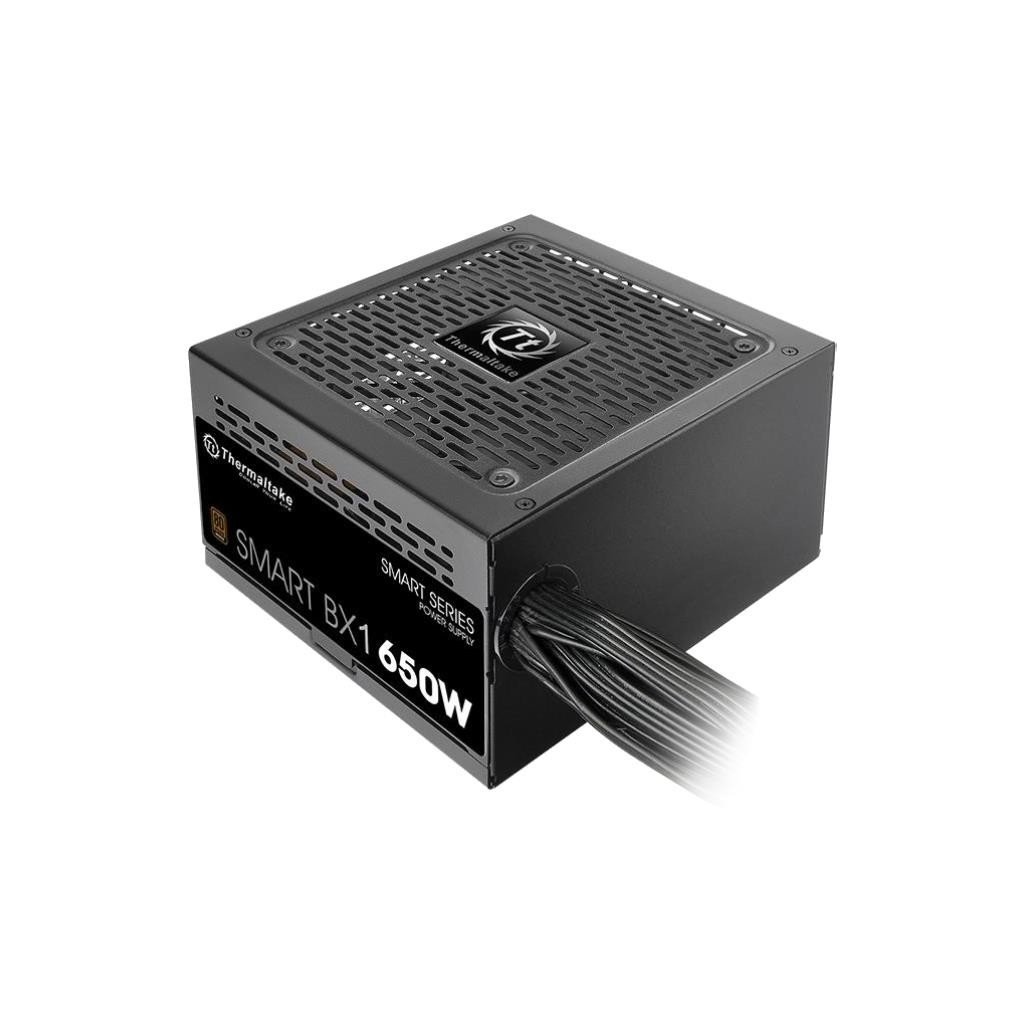

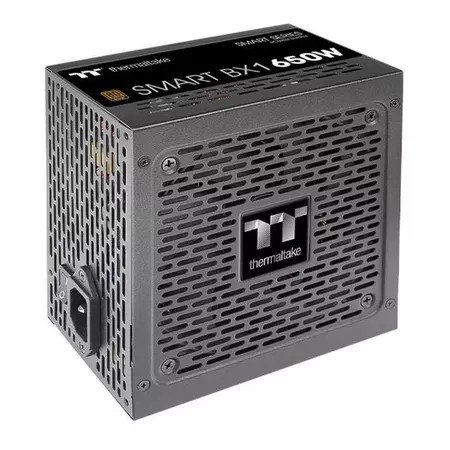

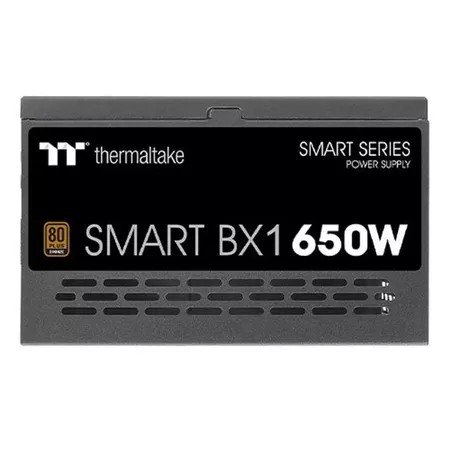

POWER SUPPLY Smart BX1/0650W

Smart BX1/0650W/Non Modular/Non Light/Full Range/Analog/80 P
Model : PS-SPD-0650NNFABE-4
Vendor Code : PS-SPD-0650NNFABE-4
Description : Smart BX1/0650W/Non Modular/Non Light/Full Range/Analog/80 Plus Bronze/EU/Non JP CAP/All Flat Cables/DC to DC

รายละเอียดสินค้าโดยย่อ
• 650 Watt
• 80 Plus Bronze
• NON Modular
• ATX
P/N PS-SPD-0650NNFABx-1
WATTS 650W
พัดลม RGB ไม่ใช่
ฟอร์มแฟคเตอร์ ATX
MODEL SPD-650AH2NKB | SPD-650AH2NLB | SPD-650AH2NCB
ชนิด ATX 12V v2.3 and EPS v2.92
MAX. OUTPUT CAPACITY 650W
COLOR Black
DIMENSION ( W / H / D ) 150mm(W) x 86mm(H) x 140mm(D)
PFC (POWER FACTOR CORRECTION) Active PFC
POWER GOOD SIGNAL 100-500 msec
HOLD UP TIME > 16msec at 70% of full load
INPUT CURRENT 12A max. | 6 – 12A | 10A max.
INPUT FREQUENCY RANGE 50Hz - 60Hz |47Hz - 63Hz | 47Hz - 63Hz
INPUT VOLTAGE 100V – 240V~
OPERATING TEMPERATURE 5C to + 40C | 5C to + 40C | 0C to + 40C
OPERATING HUMIDITY 20% to 85%, non-condensing | 20% to 85%, non-condensing | 20% to 90%, non-condensing
STORAGE TEMPERATURE -40C to + 55C | -40C to + 55C | -40C to + 70C
STORAGE HUMIDITY 10% to 95%, non-condensing | 10% to 95%, non-condensing | 5% to 95%, non-condensing
COOLING SYSTEM 12cm Hydraulic bearing fan
EFFICIENCY Meet 80 PLUSBronze at 115Vac input.
MTBF 100,000 hrs minimum
SAFETY APPROVAL CE/CB/TUV/ UL/ FCC/ BSMI
PCI-E 6+2PIN 2
